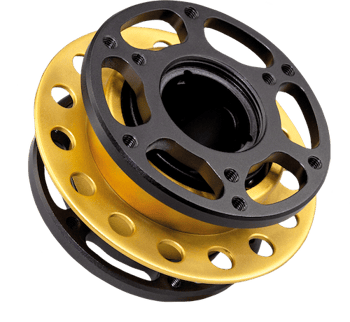

Quick Release Steering Boss

Quick Release

410-100-013(1)The Lifeline quick release steering boss is CNC manufactured using aircraft quality aluminium hard anodised for strength and durability.

Both male and female splines are precision gear cut incorporating a master spline for accurate alignment. Material for male splined shaft all are machined from EN 3B, diameter of standard weld in male spigot is 20mm, Lifeline is able to manufacture bespoke steering wheel quick releases to suit the requirements of any constructor. Different diameter splines, shafts and whole steering column assemblies can be produced.

Certain Lifeline steering quick release bosses can be supplied with a prewired 8-way electrical connector to allow the use of steering wheel mounted instruments or switch gear, and in 2,3,4,5,6,7,10, 14, 16 & 22 electrical connector arrangements (non-prewired) to suit individual and constructor’s needs, details upon request. All connectors are manufactured to IP50 specification.

The Lifeline quick release steering boss is available in 5 different formats,



Touring Car

Very popular weld on quick release steering boss that is perfect for a competitor looking for a direct and secure quick release system. Available pre-wired with 8, 14 or 16 pins.

- 6 x 70mm PCD.

Download our Motorsport price list.

More Information

DOWNLOAD TECHNICAL PACK

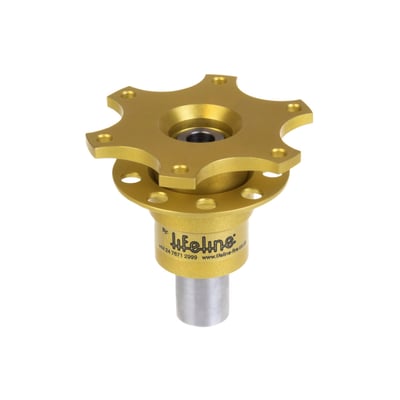

Touring Car Quick Release - 410-100-002 (5)-1
Group N Quick Rleease - 410-100-003 (4)-1


Group N

Allows you to use the quick release mechanism in conjunction with any aftermarket steering wheel boss that is perfect for a competitor looking for a direct and secure quick release system. Available pre-wired with 8, 14 or 16 pins.

- 6 x 70mm PCD.

Download our Motorsport price list.

More Information

DOWNLOAD TECHNICAL PACK


Formula Car

A 3 bolt quick release steering wheel boss that is perfect for a competitor looking for a direct and secure quick release system. Available pre-wired with 8, 14 or 16 or 22 pins.

- 3 x 50.8 PCD.

Download our Motorsport price list.

More Information

DOWNLOAD TECHNICAL PACK

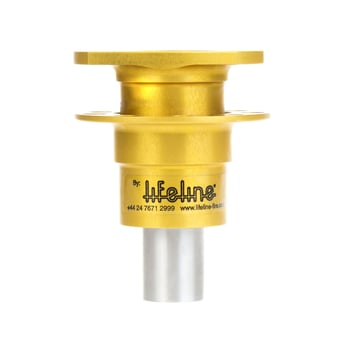

Formula Car Quick Release - 410-100-001 (3)-1
Classic 9 Hole (Fit Moto-Lita) Qucik Release - 410-100-005 (3) (1)


Classic 9 Hole

This high quality aluminium quick release is designed to fit Mota Lita style wheels, it is available as a bolt on (pictured) or weld on spline..

Download our Motorsport price list.

More Information

DOWNLOAD TECHNICAL PACK

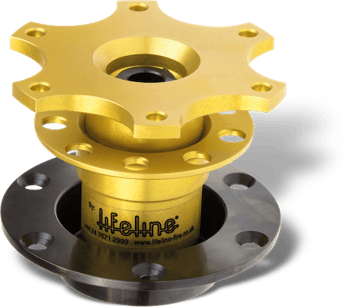

High angularity quick release

As pit stop times are as crucial to the race performance of a vehicle as it’s on track performance Lifeline has developed a quick release system that can give teams back valuable seconds.

Allowing for a miss alignment of up to 100 Degrees this ingenious new design can compensate for wear allowing for a rapid and quality fit that requires little effort from the Driver every time the wheel is engaged. The optimized design also means that this new quick release from Lifeline is the lightest on the market today at under 290g.

Available with either weld on or bolt on (pictured) spline.

- 3 x 50.8 and 6 x 70mm PCD.

Download our Motorsport price list.

More Information

DOWNLOAD TECHNICAL PACK

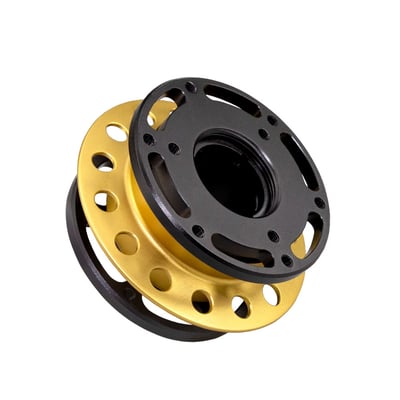

410-100-013-1

Frequently Asked Questions

Changes to the new spec systems compared to the old?

At the start of 2018, in line with a required re-homologation with the FIA Lifeline refreshed all of it’s range of Fire suppression systems.

For Zero 2000

There is a change in nozzles count (increase from 4 to 8), there is change in tubing size from 10mm to 8mm (now every lifeline system runs on 8mm tubing instead of 3 different sizes) and the cylinder is not 3 times stronger than the previous generations with no increase in weight. The result is a more efficient and capable fire suppression system that is ready for any motorsport application.

For Zero 360

The main change is a reduction in nozzle count, by using different nozzle technology we can now off all Zero 360 systems with a reduced installation kit when compared with previous generations. This means that when compared to previous generations we can now offer a lighter and less complex product suitable for professional motorsport applications.

Returns procedure

  1. Contact our Sales department with details of your query/issue & whether you require a service, refill or strip & survey report (investigation).
  2. We will document this in our returns log & issue you a Returns Number.
  3. Once you have a returns number please fill out the for here and attach it to the outside of the box.
  4. When your system reaches our goods received department, they can find the information you've provided in our returns log & push your system through the right channel i.e. the Quality department for inspection.



Service agents

The latest regulations - For UK only

Up until 01/01/2018 the MSA was unique in that the service of the plumbed in fire suppression systems was only ever a recommendation, anyone who has had the opportunity to race on the continent will know that this is not the case and 2 yearly services are widely enforced in Europe. Enforcing mandatory services is first step by the MSA is part of the phasing in of FIA homologated fire suppression systems. From 01/01/2019 all new vehicles will require and FIA Homologated system from FIA technical list 16 or 52 and from 01/01/2022 all vehicles are required to be fitted with such a system. In anticipation of this all manufactures of MSA type systems have ceased manufacture of this type of system.

Which system would you recommend for my car?

All of the motorsport fire suppression systems that Lifeline Manufacture are FIA homologated, so what are the options available to you. The Zero 2000 range filled with AFFF are cost effective and now with Lifeline’s latest development in misting nozzles technology are more effective than ever at knocking fires down. If space and weight are a premium in the vehicle then the Zero 360 range is the perfect option, filled with Novec TM 1230 the zero 360 range features some of the lightest and most compact systems available today.

Both ranges are available with mechanical (pull cable) or electrical (push button) activation, the advantage of choosing a electrical one is that it will come in a smaller and lighter package.

If you have a rally car then you must have a minimum of 3.0kgs of suppressant as well as a hand held extinguisher, we sell these in a bundle at a discount in ‘rally packs’. For the rally packs you have the choice of Zero 2000 electrical or mechanically operated alternatively the smaller and lighter option of the Zero 360 electrical or mechanically operated.

Will my extinguisher comply with the latest regulations?

These are the general requirements for competition vehicles under the current FIA regulations, some series enforce specific requirements so it is always worth thoroughly reading the technical regulation of the specific series that you are competing in. if you are competing in the UK then From 01/01/2019 all new vehicles will require and FIA Homologated system from FIA technical list 16 or 52 and from 01/01/2022 all vehicles are required to be fitted with such a system.

For Circuit vehicles - FIA technical list 16

The minimum requirement for a circuit vehicle is 1 plumbed in fire extinguisher homologated to FIA technical list 16 a full list can be found here. If the homologation number on the main serial label of the bottle matches one on the list then as long as it is not over 10 years old, has been serviced within the past 2 years and is fitted as per the manufactures instruction then it is eligible for circuit racing.

For Rally - FIA technical list 16

As rally cars are potentially further away form marshal aid there are a few extra requirements in place for rally cars, 1 plumbed in and 1 hand held extinguisher are required. Both must meet the requirements of FIA Technical list 16  a full list of plumed in systems can be found here can be found here. there is a note dictating which ones are eligible for rally as a minimum of 3.0kgs of suppressant is required. If the homologation number on the bottle matches one on the list then as long as it is not over 10 years old, has been serviced within the past 2 years and is fitted as per the manufactures instruction then it is eligible. For the Hand held to be eligible then it must have an minimum amount of suppressant for AFFF foam it is 2.4 ltrs and for Novec 1230 Gas it is 2.0kg, the same service requirements apply.

For FIA Categories WRC, R5, RGT, T1, GT3, WRX – Technical List 52 8865-2015 Standard

The FIA introduced a new standard of fire suppression that came into force for some categories of motorsport, 1 plumbed in Fire extinguisher homologated to technical list 52 is required again if it is a rally vehicle a hand held (2.4 ltrs of AFFF foam or 2.0kg of Novec 1230) must be carried. Check the homologation number on your bottle and check it on the list here. If the homologation number on the bottle matches one on the list then as long as it is not over 10 years old, has been serviced within the past 2 years and is fitted as per the manufactures instruction then it is eligible.
