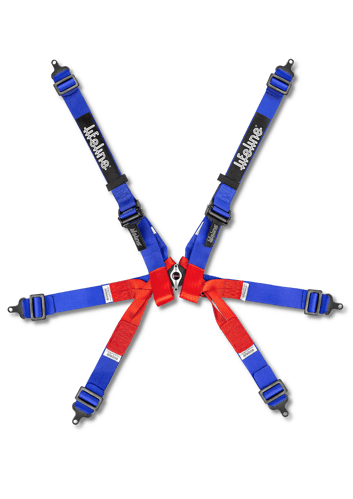

Stowe Motorsport Harness
FIA-approved 6-point harness for single seater racing, designed for maximum safety and performance with high-quality materials and construction.
Available in a choice of colours and approved to FIA 8853-2016 these high quality motorsport harnesses are designed and made in the UK at Lifeline's ISO 9001:2015 accredited factory. This ensures the high quality and attention to detail seen on the rest of Lifeline's motorsport safety systems are carried over to every feature of the Stowe FIA 8853-2016 Harness.
Homologation Number SH.088-22-T-6
Have a saloon car? try our Copse Harness
Stowe FIA 8853-2016 Harness
Lifeline Stowe Formula 6 Point Harness is a state of the art harness featuring lightweight aluminium adjusters for quick and easy adjustment. The crotch straps are fed through high contrast D loops on the lap straps that gives drivers greater freedom in the confines of a single seater cockpit.
High levels of attention to detail have been made such as easily visible pull down loops on the shoulder adjusters and strategically placed Velcro for communication cables and drinks tubes. The harness comes with a specially designed buckle for the Stowe model, ensuring ease of use without compromising on performance.
FHR only.
Colours: Black, Blue
Stowe Harness Specification |
||
Shoulder Strap | Width | 50mm |
Minimum Length | 500mm | |
Maximum Length | 795mm | |
Adjustability | 315mm | |
Adjuster Type | Lift handle forged aluminium with Lifeline branded pull tabs | |
Lap Strap | Width | 50mm |
Minimum Length | 290mm | |
Maximum Length | 730mm | |
Adjustability | No in seat adjustment | |
Adjuster Type | 3-bar slide | |
Crutch Strap | Width | 50mm |
Minimum Length | 300mm | |
Maximum Length | 870mm | |
Adjustability | No in seat adjustment | |
Adjuster Type | 3 bar slide |
All strap length measurements taken from centreline of the mounting bolts to the mounting hole in the tongue
All straps have a 3 bar slide for easy adjustment of mounting position
All Lifeline racing harnesses can be mounted with their supplied attachments or wrapped using the 3 bar slide
All straps whose adjuster is a 3 bar slide cannot be adjusted by the driver while seated
Require additional information?
Click on the link below to receive a comprehensive technical data document pack.
