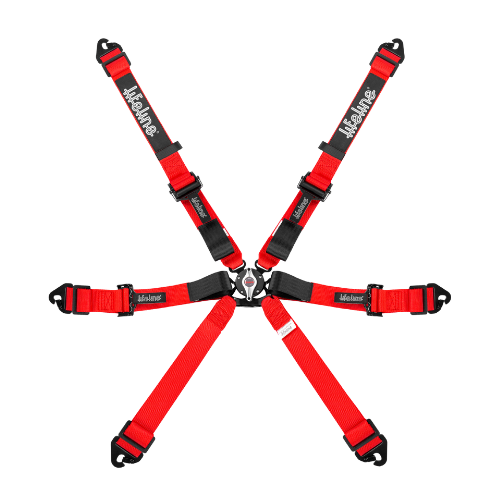

Woodcote Motorsport Harness
All the advantages of Copse, now with pull-up straps
Like the Copse, this harness range is designed for endurance and competitive racing, sharing the same lightweight, high-quality, strategic design as the Copse – aluminium adjusters, Velcro for communication cables and drink tubes, lap strap zip adjusters integrated into the lap strap tongue and a choice of snap hook or bolt-through end fittings.
But it has the additional benefit of upward-pull lap strap adjusters for drivers who are restricted by space.
Prefer a different adjustment style? Try our Copse Harness.
Made in Britain
Unlike many harnesses on the market, every component of the Woodcote range – including our unique buckle – is designed and manufactured entirely in the UK at our ISO 9001:2015 accredited facility. This complete in-house process ensures the quality and attention to detail found across all Lifeline safety systems is carried through to every feature of the Woodcote range.
It features a uniquely designed aerospace-grade buckle mechanism that enables easy, positive latching, along with lightweight construction that ensures maximum driver confidence.
The Woodcote Harness is approved to FIA 8853-2016, is FHR-only and is available in multiple colours.
Ideal for: Saloon and Rally Cars
FIA Homologation Number: SH.081.20-T-6
Copse Harness Specifications |
||
| Shoulder Strap | Width | 50mm |
| Minimum Length | 1580mm | |
| Maximum Length | 1900mm | |
| Adjustability | 320mm | |
| Adjuster Type | Lift handle forged aluminium with pull tabs | |
| Lap Strap | Width | 50mm |
| Minimum Length | 500mm | |
| Maximum Length | 1200mm | |
| Adjustability | 700mm | |
| Adjuster Type | Zip adjuster integrated into the tongue with pull tabs | |
| Crutch Strap | Width | 50mm |
| Minimum Length | 250mm | |
| Maximum Length | 710mm | |
| Adjustability | No in-seat adjustment | |
| Adjuster Type | 3-bar slide | |
- All straps have a 3-bar slide for easy adjustment of the mounting position.
- All racing harnesses can be mounted using the supplied attachments or wrapped using the 3-bar slide.
- Straps with a 3-bar slide as the adjuster cannot be adjusted by the driver while seated.
