ZERO_3620_Tall_White

3620 Firemarshal

Zero 3620

The patented Lifeline Zero 3620 systems are a step change in Motorsport fire Safety

The latest FIA standard for Plumbed in Fire Suppression systems, 8865:2015 is a great step in both driver and vehicle safety requirements. In response to this Lifeline Released the Zero 3620 Series, drawing on over 20 years of design experience the Zero 3620 systems have convincingly passed all FIA and BSI tests.

When choosing an FIA 8865-2015 system it is critical to specify by the cockpit volume (m3) in order to maintain protection from a fire and the safety of the driver/co-pilot. All Lifeline Zero 3620 systems are described by cockpit volume to make this choice simple. Due to mandated ballast being built into the smaller system there is no weight advantage across the 3620 range.

Suitable for use in all FIA categories but mandatory for

  • WRC, R5, R3, R2, WRX, GT3,T1, RG-T

Read more:



Zero 3620

The patented Lifeline® Zero 3620 systems are a step change in Motorsport fire suppression technology representing the safest, most advanced, fastest and most validated product available to competitors. 20 years of experience, knowledge, continuous improvement, testing and real-world customer feedback have been put into this product, as well as validation from the FIA, BSI and the UK MOD.

Using a combination of 3M® Novec 1230™ and an AR-AFFF blend discharged through 1 high discharge nozzle in the cockpit and 3 in the engine bay, both performance and ease of installation are ensured.

Kit Includes

  • Cockpit Nozzle x 1 (either fitted directly to cockpit bottle or on 1m hose)

  • Engine Nozzles x 3 (2 x Foam Spray bars, 1 x HD Nozzle for Novec 1230 TM)
  • FIA complaint Bracket and Straps
  • Tubing, 10mm Dia in Cockpit, 8mm Dia in engine

  • Bulkhead Connector x 1, T Connector x 1, Straight Connector x 2
  • Intelligent Control Box x 1,
  • Waterproof switches x 2,
  • Wiring For switches and Control Box

UK Patent GB 1502347.6; GB 1516832.1; PCT/GB2015/050391.

Download our Motorsport price list.

More Information

DOWNLOAD TECHNICAL PACK
Zero 3620 - Engine + 1.6-2.3 m3 Cockpit System - 105-001-001 + 941-000-025 (2) (1)

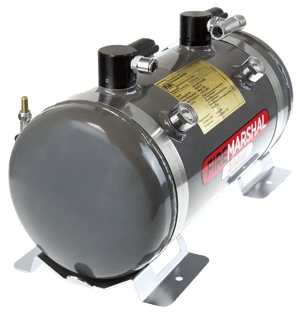

IMG_1667

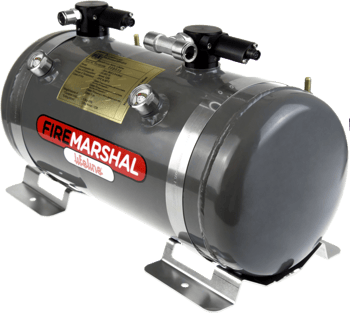

Zero 3620 Fire Marshal

Zero 3620 Firemarshal meets the FIA’s demanding 8865:2015 standard and has been tested using a combination of 3M® Novec 1230™ and an AR-AFFF blend for use with unleaded petrol, diesel and E85 fuels.

Housed within a single fabricated aluminium cylinder, it discharges into both the engine and cockpit using aluminium tube, connected using high quality lightweight aluminium compression fittings, it is supplied with sufficient lengths of delivery pipework to ensure the best possible packaging within all vehicles. The system also has the added benefit to allow two further coolant outlets to be fitted should there be multiple areas in the engine bay that need to be cooled down to help prevent re-ignition.

Kit Includes

  • Cloud Burst Cockpit Nozzle x 2

  • Engine Nozzles x 3 (2 x Foam Nozzles, 1 x HD Nozzle for Novec 1230 TM)
  • Coolant Nozzles x 2 (For free placement)
  • FIA complaint Bracket and Straps
  • Tubing, 10mm Dia in Cockpit, 8mm Dia in engine

  • Bulkhead Connector x 1, T Connector x 3 (2 x 8mm, 1 x 10mm)
  • Intelligent Control Box x 1,
  • Waterproof switches x 2,
  • Wiring For switches and Control Box

*UK Patent No GB2523902.

Download our Motorsport price list.

More Information

DOWNLOAD TECHNICAL PACK

Frequently Asked Questions

Changes to the new spec systems compared to the old?

At the start of 2018, in line with a required re-homologation with the FIA Lifeline refreshed all of it’s range of Fire suppression systems.

For Zero 2000

There is a change in nozzles count (increase from 4 to 8), there is change in tubing size from 10mm to 8mm (now every lifeline system runs on 8mm tubing instead of 3 different sizes) and the cylinder is not 3 times stronger than the previous generations with no increase in weight. The result is a more efficient and capable fire suppression system that is ready for any motorsport application.

For Zero 360

The main change is a reduction in nozzle count, by using different nozzle technology we can now off all Zero 360 systems with a reduced installation kit when compared with previous generations. This means that when compared to previous generations we can now offer a lighter and less complex product suitable for professional motorsport applications.

Returns procedure

  1. Contact our Sales department with details of your query/issue & whether you require a service, refill or strip & survey report (investigation).
  2. We will document this in our returns log & issue you a Returns Number.
  3. Once you have a returns number please fill out the for here and attach it to the outside of the box.
  4. When your system reaches our goods received department, they can find the information you've provided in our returns log & push your system through the right channel i.e. the Quality department for inspection.



Service agents

The latest regulations - For UK only

Up until 01/01/2018 the MSA was unique in that the service of the plumbed in fire suppression systems was only ever a recommendation, anyone who has had the opportunity to race on the continent will know that this is not the case and 2 yearly services are widely enforced in Europe. Enforcing mandatory services is first step by the MSA is part of the phasing in of FIA homologated fire suppression systems. From 01/01/2019 all new vehicles will require and FIA Homologated system from FIA technical list 16 or 52 and from 01/01/2022 all vehicles are required to be fitted with such a system. In anticipation of this all manufactures of MSA type systems have ceased manufacture of this type of system.

Which system would you recommend for my car?

All of the motorsport fire suppression systems that Lifeline Manufacture are FIA homologated, so what are the options available to you. The Zero 2000 range filled with AFFF are cost effective and now with Lifeline’s latest development in misting nozzles technology are more effective than ever at knocking fires down. If space and weight are a premium in the vehicle then the Zero 360 range is the perfect option, filled with Novec TM 1230 the zero 360 range features some of the lightest and most compact systems available today.

Both ranges are available with mechanical (pull cable) or electrical (push button) activation, the advantage of choosing a electrical one is that it will come in a smaller and lighter package.

If you have a rally car then you must have a minimum of 3.0kgs of suppressant as well as a hand held extinguisher, we sell these in a bundle at a discount in ‘rally packs’. For the rally packs you have the choice of Zero 2000 electrical or mechanically operated alternatively the smaller and lighter option of the Zero 360 electrical or mechanically operated.

Will my extinguisher comply with the latest regulations?

These are the general requirements for competition vehicles under the current FIA regulations, some series enforce specific requirements so it is always worth thoroughly reading the technical regulation of the specific series that you are competing in. if you are competing in the UK then From 01/01/2019 all new vehicles will require and FIA Homologated system from FIA technical list 16 or 52 and from 01/01/2022 all vehicles are required to be fitted with such a system.

For Circuit vehicles - FIA technical list 16

The minimum requirement for a circuit vehicle is 1 plumbed in fire extinguisher homologated to FIA technical list 16 a full list can be found here. If the homologation number on the main serial label of the bottle matches one on the list then as long as it is not over 10 years old, has been serviced within the past 2 years and is fitted as per the manufactures instruction then it is eligible for circuit racing.

For Rally - FIA technical list 16

As rally cars are potentially further away form marshal aid there are a few extra requirements in place for rally cars, 1 plumbed in and 1 hand held extinguisher are required. Both must meet the requirements of FIA Technical list 16  a full list of plumed in systems can be found here can be found here. there is a note dictating which ones are eligible for rally as a minimum of 3.0kgs of suppressant is required. If the homologation number on the bottle matches one on the list then as long as it is not over 10 years old, has been serviced within the past 2 years and is fitted as per the manufactures instruction then it is eligible. For the Hand held to be eligible then it must have an minimum amount of suppressant for AFFF foam it is 2.4 ltrs and for Novec 1230 Gas it is 2.0kg, the same service requirements apply.

For FIA Categories WRC, R5, RGT, T1, GT3, WRX – Technical List 52 8865-2015 Standard

The FIA introduced a new standard of fire suppression that came into force for some categories of motorsport, 1 plumbed in Fire extinguisher homologated to technical list 52 is required again if it is a rally vehicle a hand held (2.4 ltrs of AFFF foam or 2.0kg of Novec 1230) must be carried. Check the homologation number on your bottle and check it on the list here. If the homologation number on the bottle matches one on the list then as long as it is not over 10 years old, has been serviced within the past 2 years and is fitted as per the manufactures instruction then it is eligible.
